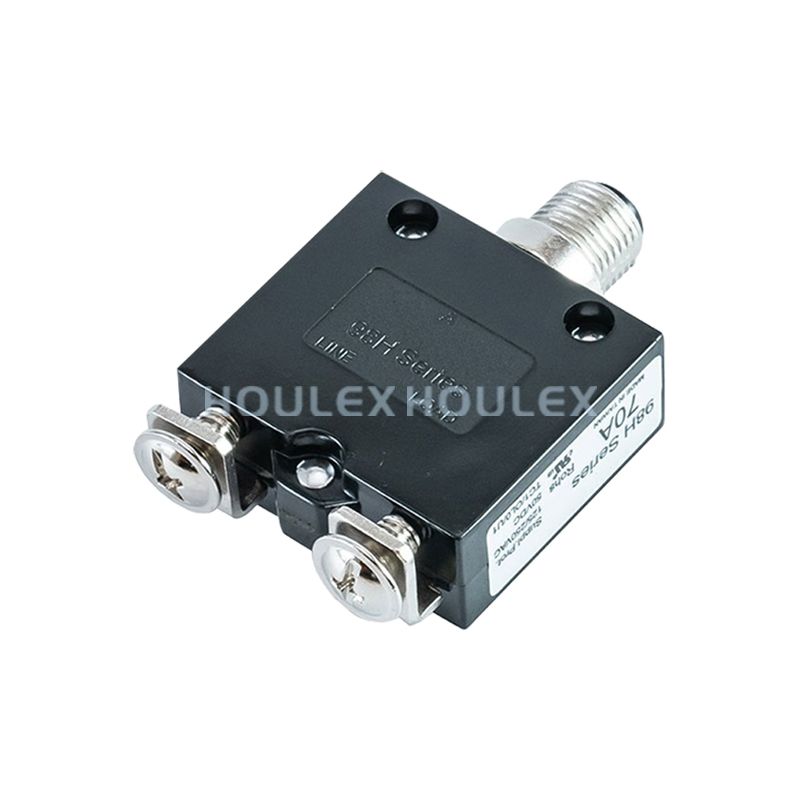

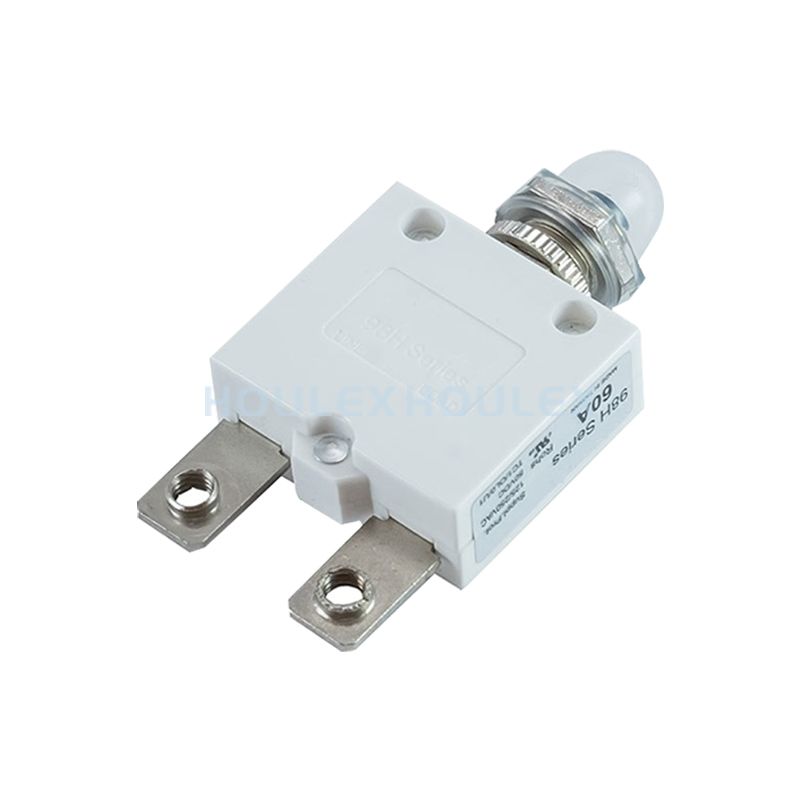

98H-Series
![](/assets/img/swjian.png)
![](/assets/img/swjian.png)
98H-Series
额定电流(rating):40A-80A
输入电压(Input Power):125VAC/250VAC/50VDC 50-60Hz
耐电压强度(Withstand voltage strength):1500VAC/1min,漏电电流≤0.5mA
(1500VAC/min,the leaked current is less than≤0.5mA)
绝缘电阻(Insulation Resistance):500VDC 1Min≥100MΩ
额定短路能力(Rated short-circuit capacity):125VAC/1000A,250VAC/1000A
额定通断能力(Rated breaking capacity):6倍额定电流
(6 times rated current)
复位方式(Reset):手动复位(Manual Push
Reset)
